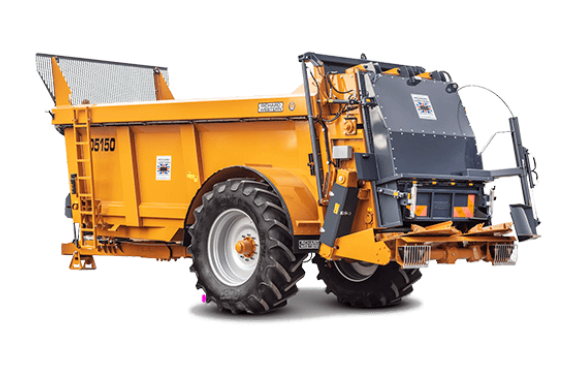

Manure Spreaders

BODY

Constructed using 6mm floor panels and 4mm side panels for strength and durability. The standard 1.6m wide body with a flared top creates a wider area for easy loading and less spillage.

FLOOR & FLOOR CHAINS

Hydraulically driven floor with two chains and a full width floor slat to give you an even spreading rate and prevent bridging. The variable floor speed control allows you to choose your application rate.

Heavy-duty 16mm chains with 65mm drive shafts up to 10 tonnes, and 20mm with 80mm drive shafts on bigger machines. The 7 tooth sprockets provide greater traction and stability for the floor chains to prevent slipping and increase wear life.

ROTORS

Large diameter rotors and a high tip speed give you wide spreading width and excellent shredding on a range of manures, composts and sludges. 10mm continuous spiral rotors give you maximum shredding and spreading, with a choice of 890mm or 1100mm rotors.

GEARBOX

The helical gearbox is ideal for high load applications. Highly durable, it allows the gears to engage and run smoothly, reducing wear and tear and increasing wear life.

EASY ACCESS GREASE POINTS
